Product |
Series |
Product Description |
Product Information |
Data Sheet |

SM |
Surface Mount - General Purpose and Precision Wirewound Resistor |
Wattages from 1W to 4W; Tolerances of 0.1% to 5%; Ohmic values of 0.01Ω to 3KΩ |
||

BR |
Thick Film Current Sensing Surface Mount Chip Resistor |
Sizes from 0402 to 1225, tolerances of 1%, 2% and 5%, ohmic values from 0.001Ω to 8Ω, TCs of 100 to 600ppm with narrow terminations available in sizes 0815, 2010 and 2512. |
||

BVM |
Ceramic Housed Vertical Wirewound Bracket Mount Resistor |
Flameproof inorganic wirewound (or Metal Oxide) resistor utilizing a bracket mount. Available from 5 to 25 watts @ +/- 300ppm and 0.1Ω to 50KΩ at 5% tolerance. |
||

CB |
Ceramic Housed with Axial Leads Power Resistor - General Purpose |
Wattages from 2W to 15W, Tolerances of 5% and 10%, Ohmic values of 0.056Ω to 820Ω. |
||

EWT |
Non-Flammable Edgewound Tubular Wirewound Vitreous Enamel Coating Resistor |
Wattages of 25W to 225W, tolerance of 5% and 10% available, ohmic values from 0.1Ω to 130KΩ |
||

KAL |
Aluminum Housed Surface Mount Resistor - General Purpose/Precision High Power Resistor |
Wattages from 10W to 250W, tolerances of 0.1% to 5%, ohmic values of 0.05Ω to 150KΩ. |
||

LCB |
Ceramic Housed Current Sensing Resistor with 2 Leads |
Wattages from 3W to 15W, Tolerances of 1% to 10%, Ohmic values of 0.005Ω to 0.2Ω. |
||

LVM |
Ceramic Housed Vertical Mount Low Resistance Resistor |
Wattages from 5W to 10W, Tolerances of 1% to 10%, ohmic values of 0.01Ω to 0.15Ω. |
||

MHL |
Metal Clad Wirewound Resistor |
High Power wirewound available in wattages from 60 to 1,000 watts. Value ranges are from 0.1Ω to 100KΩ at 1%, 5%, and 10% tolerances. Non-Inductive versions are also available. Please view the specification page for more details. |
||

MPR |
Flameproof Rectangular Type Metal Plate Resistor |
Wattages of 3W and 5W, Tolerances of 5% and 10%, Ohmic values of 0.01Ω to 0.47Ω, with TC of 350ppm. Twin type resistor style available. |
||

MR |
Low Resistance Value Leaded Resistor - Molded 2 Leads |
Wattages from 1W to 10W, Tolerances of 1% and 5%, Ohmic values of 0.005Ω to 0.5Ω. |
||

MVM |
Ceramic Housed Vertical Mount Metal Oxide Element Resistor |
Wattages of 2W to 10W, Tolerances of 5% & 10%, Ohmic values of 0.1Ω to 51KVΩ. |
||

MWW |
Ceramic Housed Wirewound Resistor with Specialty Leads |
Wattages from 5W to 10W, Tolerances of 5% and 10%, ohmic values of 0.1Ω to 50KΩ. Available with special lead formations |
||

NSZ |
Anti-Corrosive Tantalum Nitride Replacement Surface Mount Chip Resistor |
Size of 0603, 0805 and 1206, tolerances of 0.1% to 0.5%, values of 25Ω to 1MΩ, TCs of 15, 25 and 50ppm. Replaces costly Tantalum Nitride resistors for moisture sensitive applications. Qualified to AEC-Q200. |
||

NVM |
Non-inductive Ceramic Housed Vertical Mount Resistor |
Wattages from 5W to 10W. Tolerances of 0.5% to 5%. Ohmic values of 0.1Ω to 8KΩ ohm. |
||

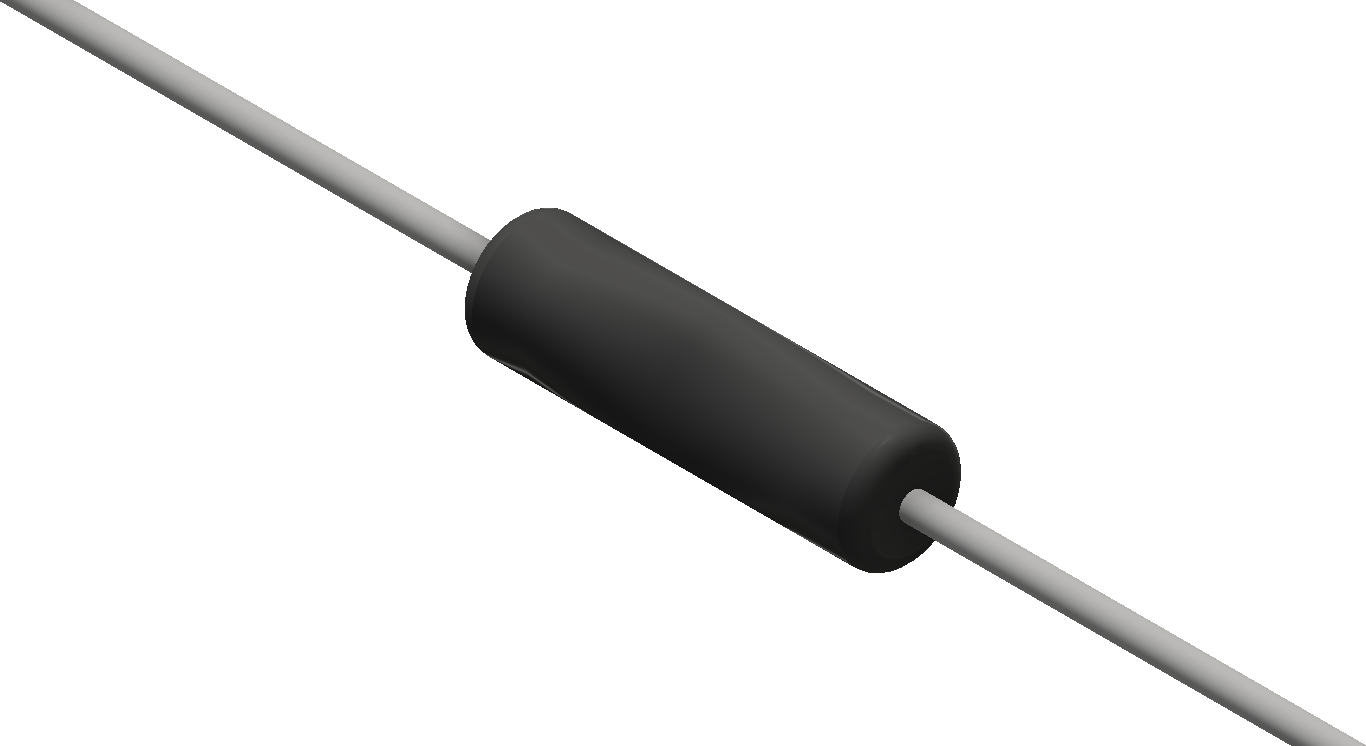

NWW |
General Purpose and Precision Leaded Wirewound Resistor- Conformal coated - Non Inductive |
Wattages from 0.4W to 10W, Tolerances of 1 and 5%, Ohmic values of 1Ω to 50KΩ. |
||

RWT |
Thermal Fusing Vertical Mount Wirewound Leaded Resistor |
Wattage of 2W to 7W, tolerance of 5%, ohmic values of 1Ω to 470Ω. Provides thermal fusing properties at 142C 2A. |
||

SP |
Conformal Coated Fusing Wirewound Resistor |
SP3A, power rating of 4W, TCR of 20ppm/C, tolerance of 5% and ohmic values from 10Ω to 100Ω ohms. |
||

SWT |
Non-Flammable Edgewound Tubular Wirewound Silicone Coating Resistor |
Wattages of 25W to 225W, tolerance of 5% and 10% available, ohmic values from 0.1Ω to 130KΩ |
||

TMR |
Low Resistance Value Leaded Resistor- Molded 4 Leads |
Wattages of 3W and 5W, Tolerances of 1% and 5%, TCs down to 40ppm, Ohmic values of 0.005Ω to 0.3Ω. |
||

VM |
Ceramic Housed Vertical Mount Wirewound Resistor |
Wattages from 2W to 10W, Tolerances of 5% and 10%, Ohmic values of 0.056Ω to 680Ω. |
||

WCB |
Ceramic Housed with Axial Leads Wirewound Resistor |
Wattages from 5W to 25W, Tolerances of 0.5% to 5%, Ohmic values of 0.1Ω to 20KΩ. |
||

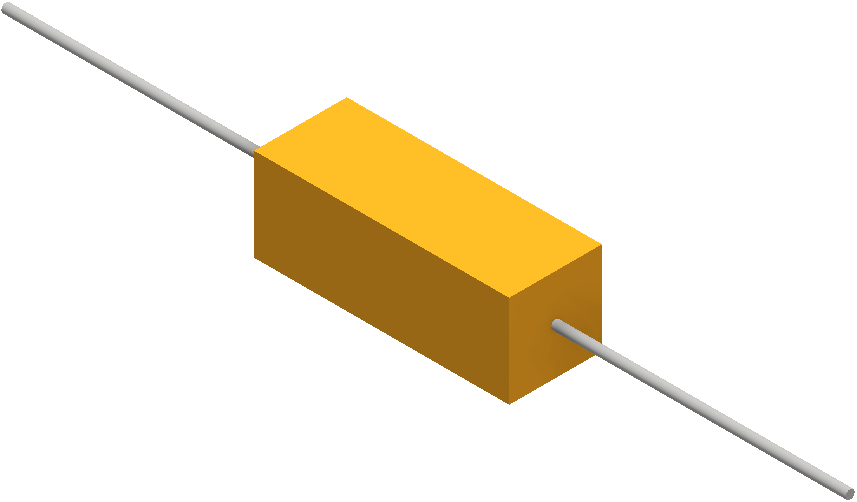

WCBF |
Ceramic Housed with Axial Leaded Wirewound Resistor with standoffs. |
Wattages from 5W to 25W, tolerances of0.5% to 5%, ohmic values of 1Ω to 20KΩ |
||

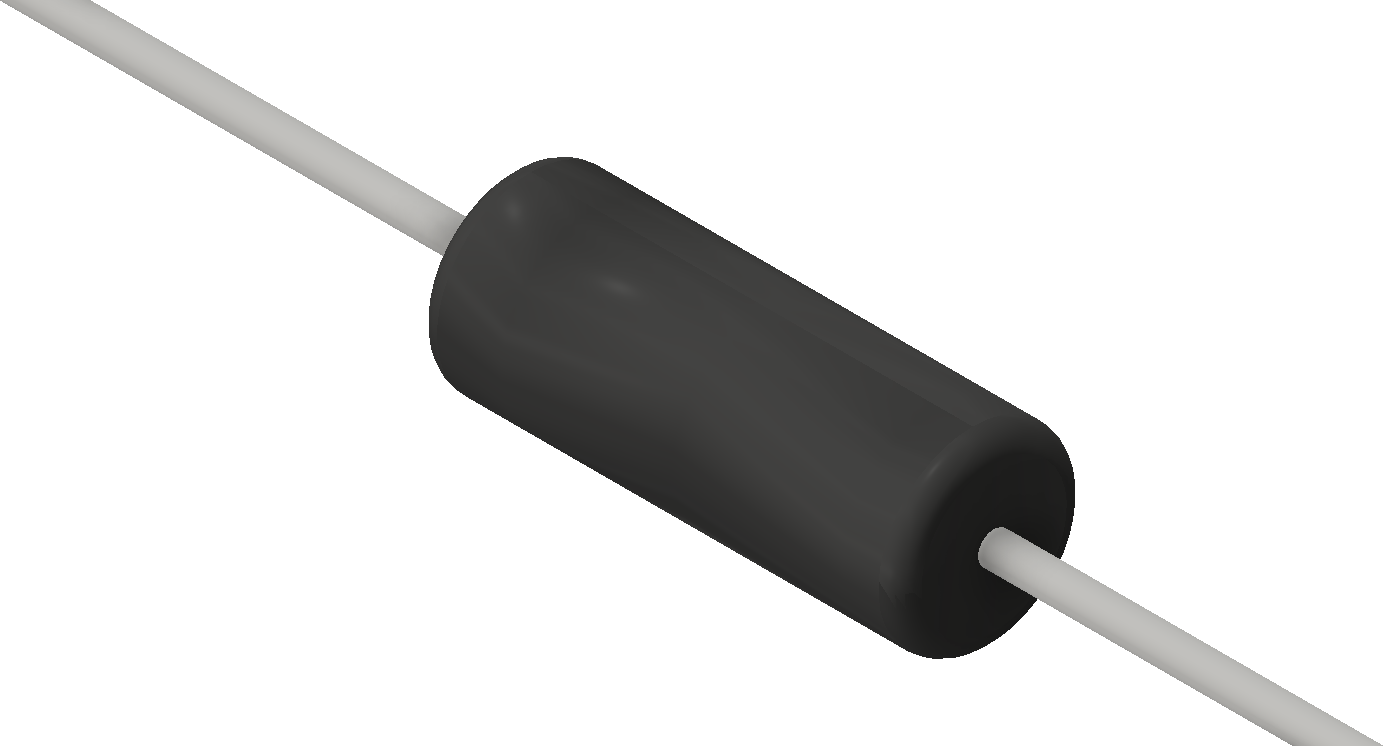

WRC |
Conformal Coated Welded Wirewound Resistor |
This is Conformal Coated Wirewound with Power Ratings ranging from 1 to 5.5 Watts, Tolerance of 5%, with Ohmic value Ranges from 0.01Ω to 680Ω |
||

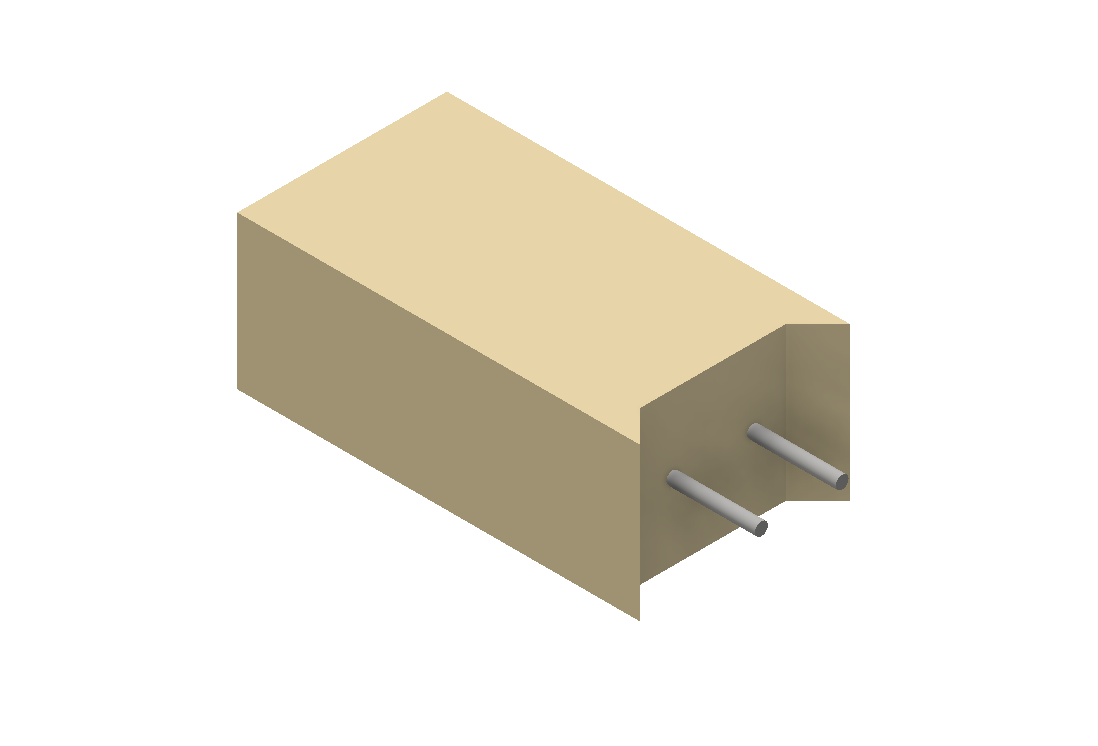

WVM |
Ceramic Housed Vertical Mount Precision Wirewound Resistor |
Wattages from 5W to 10W, Tolerances of 0.5% to 5%, Ohmic values of 0.1Ω to 8KΩ. |
||

WW |
General Purpose and Precision Leaded Wirewound Resistor- Conformal Coated |
Wattages from 0.4W to 10W, Tolerances of 0.1% to 5%, Ohmic values of 0.5Ω to 100KΩ. |
||

WWF |
General Purpose Fusing Wirewound Resistor |
Fuses quickly under continuous overload of 15X rated power without risk of flame. Wattages from 0.5W to 13W, Tolerance of 5%, Ohmic Ranges of 10Ω to 150KΩ. |
||

WWP |
Pulse Withstanding Wirewound Resistor |
Wattages from 3W to 10W, Tolerances of 5% and 10%, Ohmic values of 0.1Ω ohm to 10KΩ ohm. Guaranteed energy handling up to 583J. |
||

WWS |
General Purpose and Precision Leaded Wirewound Resistor- Conformal Coated |
WWS offers miniature size at higher power rating. |
