CSM — Molded Metal Alloy
- Construction
- Molded metal alloy
- Size
- 0603, 2512
- Value Range
- 0.001–0.1 Ω
- Power
- 0.33–3 W
- TCR
- 70 ppm (0603), 50 ppm (2512)
- AEC-Q200
- 2512
CSR — Thick Film Current Sense
- Construction
- Thick film
- Size
- 0201–1225
- Value Range
- 0.003–7.5 Ω
- Power
- —
- TCR
- 100 ppm
- AEC-Q200
- —

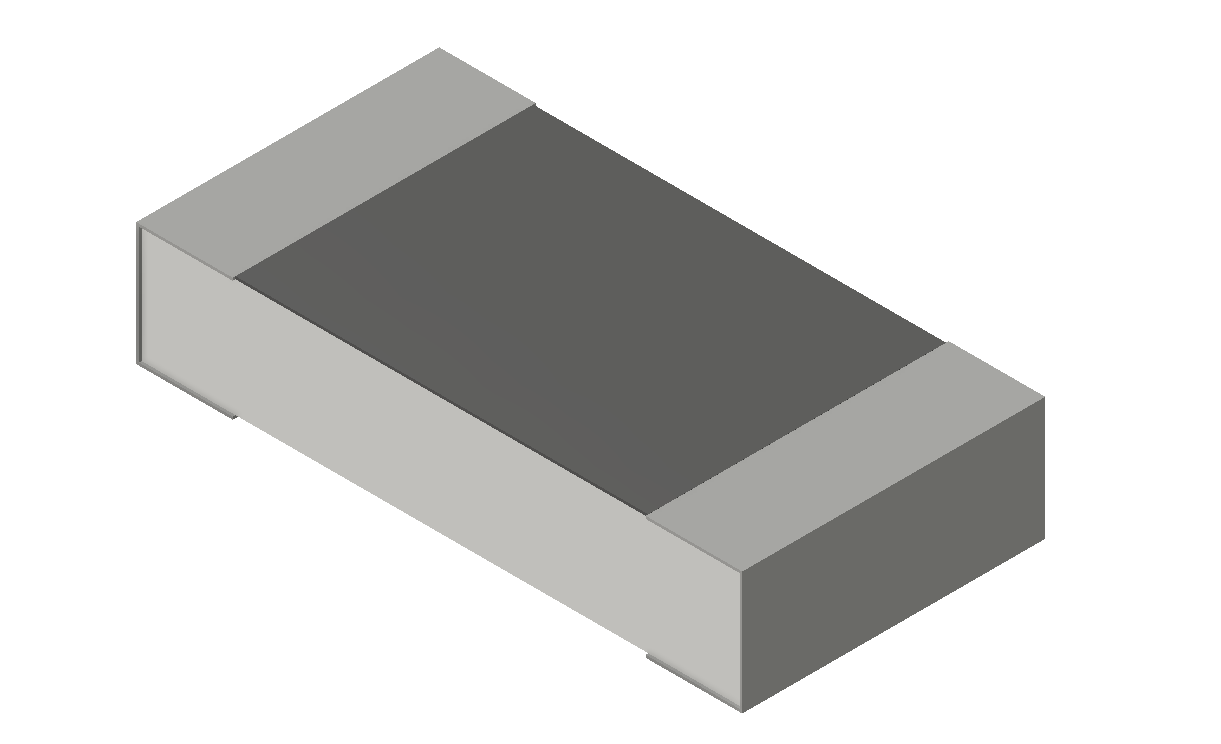

CSRF — Foil on Ceramic
- Construction
- Foil on ceramic
- Size
- 0402–2512, 1225
- Value Range
- 0.001–0.56 Ω
- Power
- —
- TCR
- to 50 ppm
- AEC-Q200
- All except 0612, 0805-HP, 2010
CSRN — Thick Film Narrow
- Construction
- Thick film, narrow
- Size
- 2010, 2512
- Value Range
- 0.01–1 Ω
- Power
- —
- TCR
- ≥200 ppm
- AEC-Q200
- 2512
CSS — Ultra-Precision Metal Alloy
- Construction
- Metal alloy
- Size
- 0201–4527 (incl. 0508, 2725, 2728)
- Value Range
- 0.0002–0.5 Ω
- Power
- 0.2–5 W
- TCR
- as low as 15 ppm
- AEC-Q200
- Yes
CSSH — Ultra-Precision High Power
- Construction
- Metal alloy (high power)
- Size
- 0805, 1206, 2010, 2512, 2728, 3637
- Value Range
- 0.0003–0.1 Ω
- Power
- 1–7 W
- TCR
- to 15 ppm
- AEC-Q200
- Yes
CSSK — Kelvin Terminated
- Construction
- Metal alloy, 4-terminal Kelvin
- Size
- 0612, 3637
- Value Range
- 0.00055–0.006 Ω
- Power
- 1 W (0612), 3 W (3637)
- TCR
- —
- AEC-Q200
- Yes
CSSU — High Power Metal Alloy
- Construction
- Metal alloy
- Size
- 2512
- Value Range
- 0.001–0.005 Ω, 0.01 Ω
- Power
- 5 W
- TCR
- 50 ppm
- AEC-Q200
- Yes
CSRT — Thin Film Current Sense
- Construction
- Thin film
- Size
- 0201–2512; 0508/0612/1020/1225 L-side
- Value Range
- 0.01–50 Ω
- Power
- —
- TCR
- 50–200 ppm
- AEC-Q200
- Yes
CSRW — Thick Film Long-Side Termination
- Construction
- Thick film, wide terminal
- Size
- 0508, 0612, 1225
- Value Range
- 0.01–0.75 Ω
- Power
- to 3 W
- TCR
- to 100 ppm
- AEC-Q200
- —
CSNL — Low Inductance Metal Alloy
- Construction
- Metal alloy, low inductance
- Size
- 1206–2512
- Value Range
- 0.2–100 mΩ
- Power
- up to 3 W
- TCR
- 50 ppm
- AEC-Q200
- 2512
HCJ — High Current Jumper
- Construction
- Metal element jumper
- Size
- 0201–2512
- Value Range
- <3 mΩ (0201/0402), <0.5 mΩ others
- Power
- —
- TCR
- —
- AEC-Q200
- Yes
HCS — High Current Shunt
- Construction
- Metal alloy shunt Resistor
- Size
- 1206–5930
- Value Range
- <0.3 mΩ , <0.3 mΩ others
- Power
- 2.5-10 W
- TCR
- 50 - 300 ppm
- AEC-Q200
- Yes
