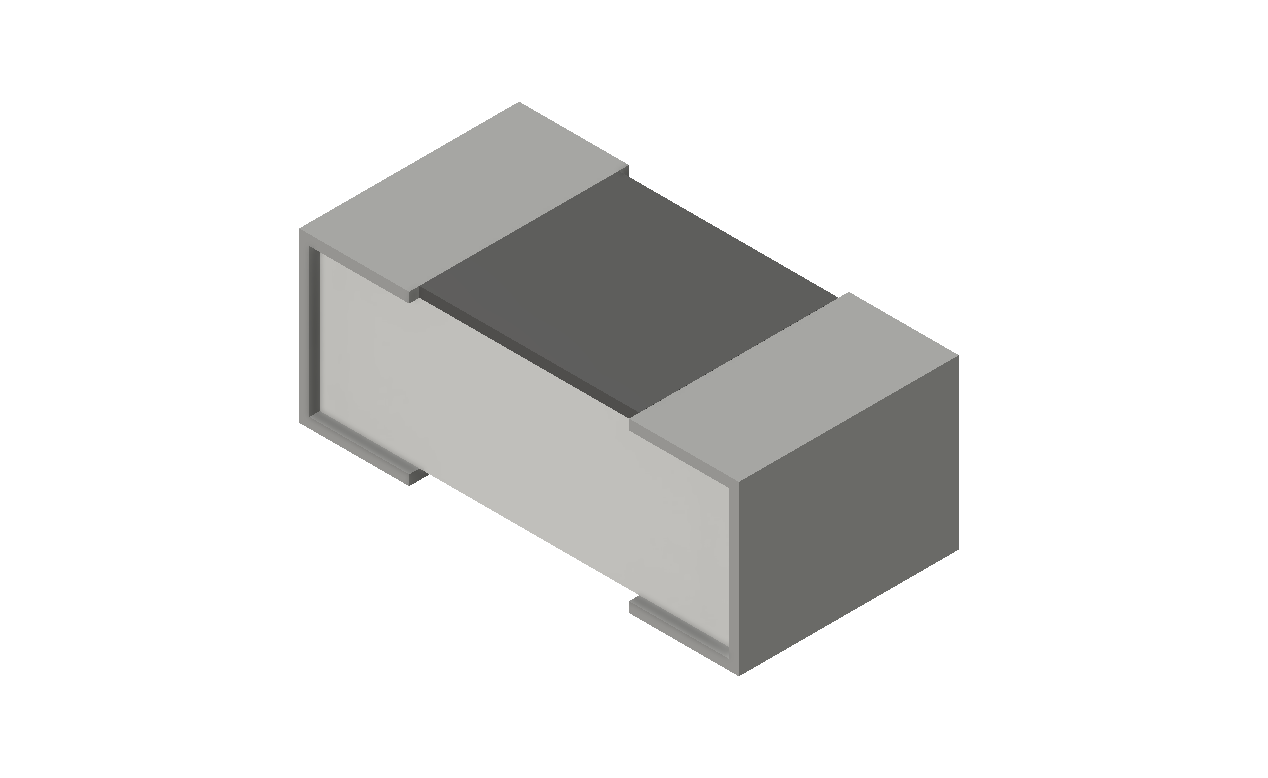

RNCF — Precision Thin Film Chip
- Technology
- Thin film
- Sizes
- 0201–2512
- Tolerance
- 0.01%–1%
- TCR
- 2–50 ppm/°C
- AEC-Q200
- Compliant
RNCS — Moisture-Resistant Precision Thin Film
- Technology
- Thin film (moisture resistant)
- Sizes
- 0402–2512
- Tolerance
- 0.1%–0.5%
- TCR
- 15 / 25 / 50 ppm/°C
- AEC-Q200
- Compliant
RNCA — Automotive Grade Anti-Sulfur Thin Film
- Technology
- Thin film (anti-sulfur)
- Sizes
- 0402–1206
- Tolerance
- 0.05%–1%
- TCR
- as low as ±10 ppm/°C
- AEC-Q200
- Qualified
RNCE — High Temperature, High Stability Thin Film
- Technology
- Thin film (high stability)
- Sizes
- 0402–1206
- TCR
- as low as ±25 ppm/°C
- Operating Temp
- up to 175 °C
- AEC-Q200
- Compliant
RNHT — Automotive High-Temperature Thin Film
- Technology
- Thin film (automotive high-temp)
- Sizes
- 0402–1206
- Tolerance
- 0.02%–0.5%
- TCR
- 5–100 ppm/°C
- AEC-Q200
- Qualified
RNWA — Wide Terminal Thin Film (Precision)
- Technology
- Thin film (wide terminal)
- Sizes
- 0612, 1020, 1225
- Tolerance
- 0.1%–1%
- TCR
- ±25 / ±50 ppm/°C
- AEC-Q200
- Qualified
RNCU — Ultra-High Power Thin Film (Precision)
- Technology
- Thin film (ultra-high power)
- Size
- 1206
- Tolerance
- 0.1%–1%
- TCR
- as low as 10 ppm/°C
- AEC-Q200
- Compliant
RNAN — Precision Thin Film on AlN (High Power)
- Technology
- Thin film on aluminum nitride
- Sizes
- 0603, 0805, 1206, 2512
- TCR
- as low as ±25 ppm/°C
- Notes
- Up to 6 W rating (size dependent)
HVC — Precision High Voltage Chip Resistor
- Technology
- Precision high-voltage (chip)
- Sizes
- 0603–3512
- Range
- 10 kΩ–50 GΩ
- TCR
- down to 25 ppm/°C
- Voltage
- up to 3.5 kV (size dep.)
- AEC-Q200
- Compliant / options

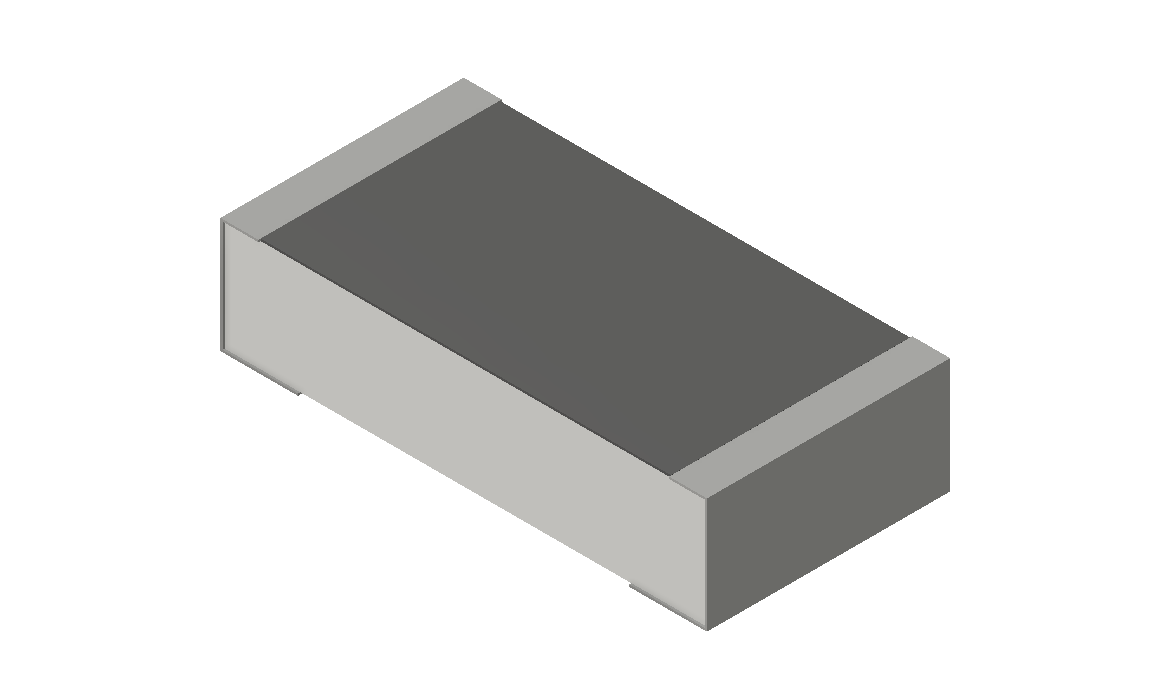

HGC — Precision High-Resistance Thick Film
- Technology
- Thick film (high resistance)
- Range
- 10 kΩ–50 GΩ
- TCR
- down to 25 ppm/°C
- Notes
- 0402–3512 package options
MLF — Precision Thin Film MELF
- Technology
- Thin film MELF
- Sizes
- 0102, 0204, 0207
- Tolerance
- 0.1%–5%
- TCR
- down to 10 ppm/°C
MLFA — Thin Film MELF (AEC-Q200)
- Technology
- Thin film MELF
- Sizes
- 0102, 0204, 0207
- Tolerance
- 0.1%–5%
- TCR
- down to 5 ppm/°C
- AEC-Q200
- Qualified
MLFM — Precision Thin Film Mini-MELF
- Technology
- Thin film MELF (mini)
- Sizes
- 0102, 0204, 0207
- Tolerance
- 0.1%–5%
- TCR
- down to 15 ppm/°C
RNF — General Purpose Metal Film (Precision)
- Technology
- Metal film (leaded)
- Power
- 0.125–2 W
- Tolerance
- 0.05%–5%
- TCR
- as low as 10 ppm/°C

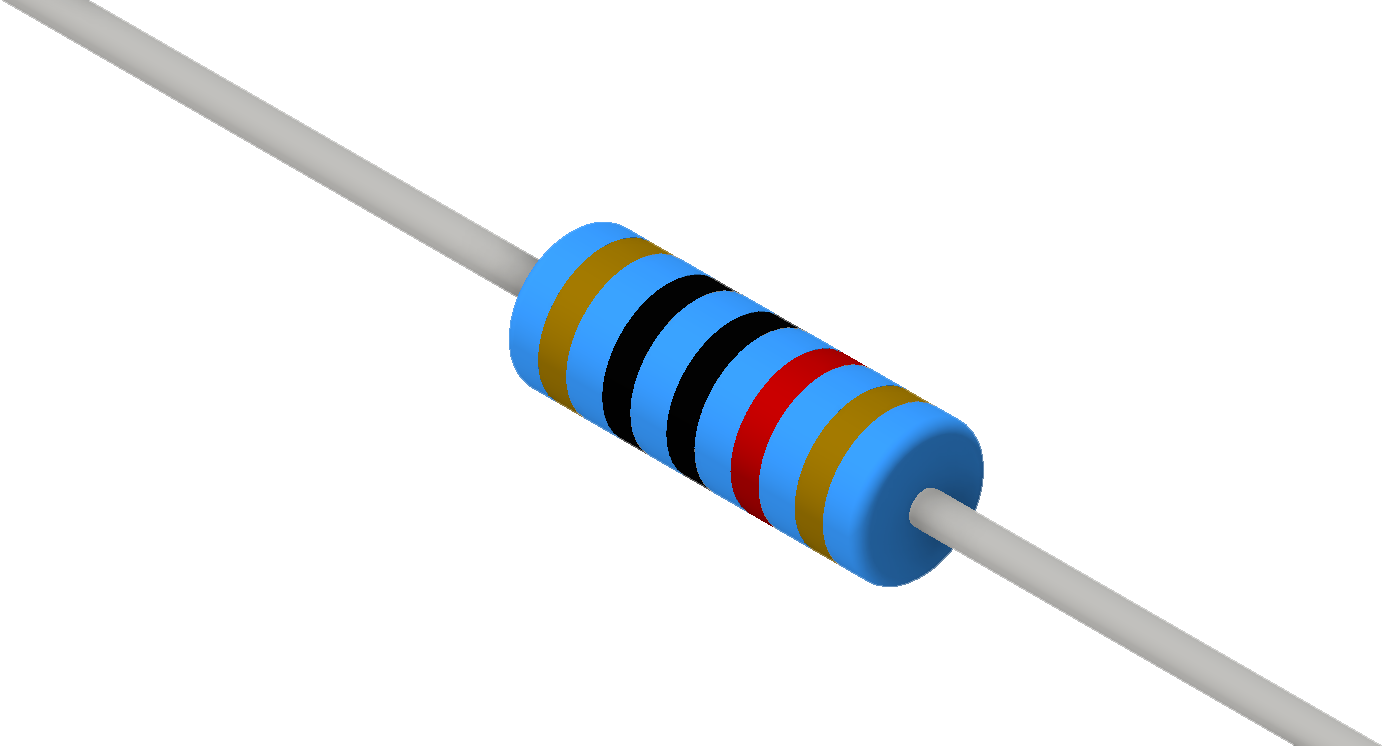

RNMF — Mini Metal Film (Precision)
- Technology
- Metal film (mini leaded)
- Tolerance
- 0.1%–5%
- TCR
- 25–100 ppm/°C
- Notes
- Compact footprint, precision
RNCL — Thin Film High-Power Anti-Surge
- Technology
- Thin film (low inductance, anti-surge)
- Sizes
- 1206, 1210, 2512
- Tolerance
- 0.5%–5%
- TCR
- 50 / 100 ppm/°C
- AEC-Q200
- Compliant
HVCD — High Voltage Chip Divider (Precision Networks)
- Technology
- Precision HV divider (chip)
- Sizes
- 3512, 4020, 5020
- Range
- 40 MΩ–10 GΩ
- Notes
- Tight ratio tracking for dividers
