Surface Mount Resistors

CSM — Molded Metal Alloy Current Sense

Construction

Metal alloy molded

Sizes

0603, 2512

Value Range

0603: 0.01–0.1 Ω; 2512: 0.001–0.1 Ω

Power

0.33 W (0603), 3 W (2512)

TCR

70 ppm (0603), 50 ppm (2512)

AEC-Q200

2512 size

Specification Sheet Find Parts

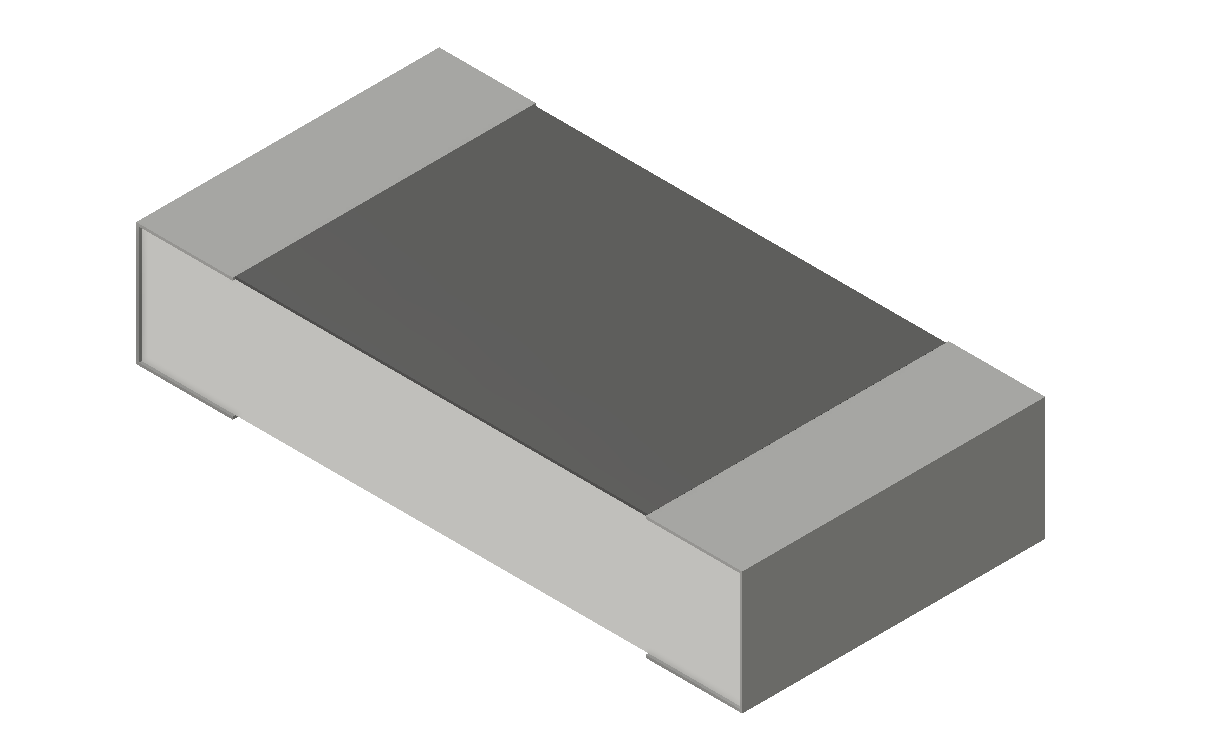

CSRF — Foil on Ceramic Current Sense

Construction

Foil on ceramic

Sizes

0402–2512, 1225

Value Range

0.001–0.56 Ω

TCR

Down to 50 ppm

AEC-Q200

All except 0612, 0805-HP, 2010

Specification Sheet Find Parts

CSRN — Thick Film Current Sense (Narrow)

Construction

Thick film (narrow)

Sizes

2010, 2512

Value Range

0.01–1 Ω

Tolerance

1%, 2%, 5%

TC

As low as 200 ppm

AEC-Q200

2512

Specification Sheet Find Parts

CSRT — Thin Film Current Sense

Construction

Thin film

Sizes

0201–2512; 0508/0612/1020/1225 long-side

Value Range

0.01–50 Ω

Tolerance

0.5%–5%

TC

50–200 ppm

AEC-Q200

Yes

Specification Sheet Find Parts

CSRW — Thick Film Long Side Termination Current Sense

Construction

Thick film (long side)

Sizes

0508, 0612, 1225

Value Range

0.01–0.75 Ω

Tolerance

1%, 5%

Power

Up to 3 W

AEC-Q200

—

Specification Sheet Find Parts

CSFA — Automotive Grade High Current Jumper

Construction

Jumper (anti-sulfur)

Sizes

0201–2512

Current

Up to 70.7 A

Resistance

<3 mΩ (0201/0402), <0.5 mΩ others

AEC-Q200

Qualified

Specification Sheet Find Parts

CSNL — Metal Alloy Current Sense

Construction

Metal alloy (low inductance)

Sizes

1206–2512

Value Range

0.2–100 mΩ

Power

Up to 3 W

TC

50 ppm

AEC-Q200

2512

Specification Sheet Find Parts

CSS — Ultra-Precision Metal Alloy Current Sense

Construction

Metal alloy (standard power)

Sizes

0201–4527

Value Range

0.0002–0.5 Ω

Power

0.2–5 W

TCR

As low as 15 ppm

Tolerance

0.5%, 1%, 5%

AEC-Q200

Compliant

Specification Sheet Find Parts

CSSH — Ultra-Precision Metal Alloy (High Power)

Construction

Metal alloy (high power)

Sizes

0805, 1206, 2010, 2512, 2728, 3637

Value Range

0.0003–0.1 Ω

Power

1–7 W

TCR

As low as 15 ppm

Tolerance

0.5%–5%

AEC-Q200

Compliant

Specification Sheet Find Parts

CSSK — Kelvin Terminated Metal Alloy

Construction

Metal alloy (4-terminal Kelvin)

Sizes

0612, 3637

Value Range

0612: 0.00055–0.0055 Ω; 3637: 0.0005–0.006 Ω

Power

1 W (0612), 3 W (3637)

AEC-Q200

Compliant

Specification Sheet Find Parts

CSSU — High Power Metal Alloy Current Sense

Construction

Metal alloy (high power)

Size

2512

Value Range

0.001–0.005 Ω; 0.01 Ω

TCR

50 ppm

Tolerance

1%, 5%

Power

5 W

AEC-Q200

Compliant

Specification Sheet Find Parts

HCJ — High Current Jumper Chip Resistor

Construction

Metal element jumper

Sizes

0201–2512

Max Resistance

0.001 / 0.0002 / 0.0005 Ω

Current

8–122 A (size dependent)

AEC-Q200

Compliant

Specification Sheet Find Parts

HCS — High Current Metal Alloy Shunt

Construction

Metal alloy shunt

Sizes

1206, 2512, 3920, 5930

Power

1.5–10 W

Value Range

0.1–5 mΩ

AEC-Q200

Compliant

Specification Sheet Find Parts

HCSK — Kelvin Termination Metal Alloy Shunt

Construction

Metal alloy Kelvin shunt

Sizes

1216, 2725, 4026

Power

5 W

Value Range

0.2–5 mΩ

TCR

50 ppm/°C

AEC-Q200

Compliant

Specification Sheet Find Parts

HCSM — High Power Metal Alloy Current Shunt

Construction

Metal alloy shunt

Size

2818

Power

7 W

Value Range

1–50 mΩ

TCR

As low as 75 ppm

AEC-Q200

Compliant

Specification Sheet Find Parts

RMCF — General Purpose Thick Film Chip Resistor

Construction

Thick film

Sizes

01005–2512

Tolerance

1%, 5%

Range

0.1 Ω–20 MΩ

AEC-Q200

Compliant (except 01005/0201)

Specification Sheet Find Parts

RMCA — Automotive Grade Anti-sulfur Thick Film

Construction

Thick film (anti-sulfur)

Sizes

0201–2512

Power

Up to 3 W

Range

0.01 Ω–30 MΩ

AEC-Q200

Qualified

Specification Sheet Find Parts

RMCP — General Purpose High Power Thick Film

Construction

Thick film (high power)

Sizes

0201–2512

Power

Up to 3 W / 7 A @ 500 V (size dependent)

Tolerance

1%, 5%

AEC-Q200

0402–2512

Specification Sheet Find Parts

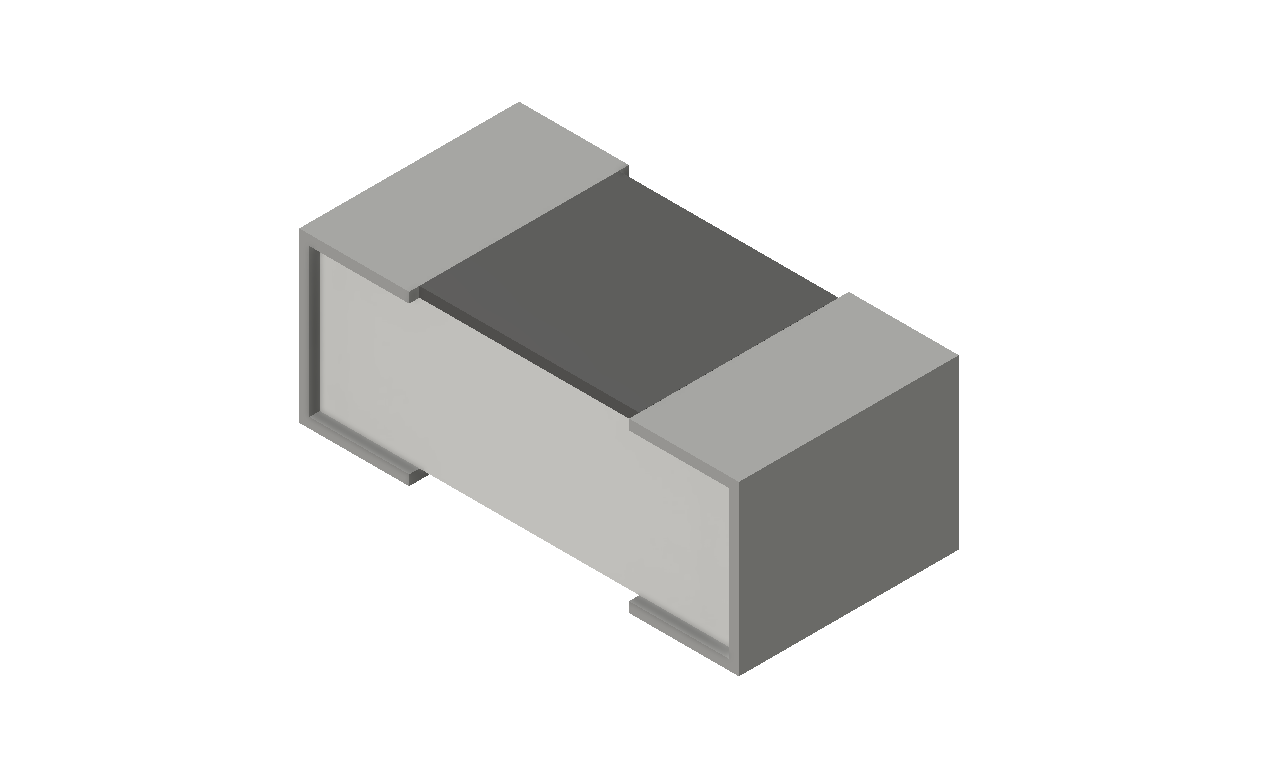

RMCS — Sulfur Resistant Thick Film

Construction

Thick film (anti-sulfur)

Sizes

0201–2512

Tolerance

0.5%, 1%, 5%

AEC-Q200

—

Specification Sheet Find Parts

RMCW — Wide Termination Thick Film

Construction

Thick film (wide terminations)

Sizes

0508–1225

AEC-Q200

Compliant

Specification Sheet Find Parts

RMEA — Automotive Grade Anti-Sulfur (RoHS w/o Exemption)

Construction

Thick film (anti-sulfur)

Sizes

0402–2512

Power

Up to 1.5 W

Tolerance

0.5%, 1%, 5%

AEC-Q200

Qualified

Specification Sheet Find Parts

RMEF — Thick Film (100% RoHS w/o Exemption)

Construction

Thick film

Sizes

0402–2512

Tolerance

1%, 5%

AEC-Q200

Compliant

Specification Sheet Find Parts

RMEP — High Power Thick Film (RoHS w/o Exemption)

Construction

Thick film (high power)

Sizes

0402–2512

Tolerance

0.1%–10%

TC

As low as 100 ppm

AEC-Q200

Compliant

Specification Sheet Find Parts

RMWA — Thick Film Automotive Grade (Long Side Termination)

Construction

Thick film (long side, automotive)

Sizes

0508–1225

AEC-Q200

Qualified

Specification Sheet Find Parts

RGC — Semi-Precision Thick Film

Construction

Thick film (semi-precision)

Sizes

0201–2512

Tolerance

0.1%, 0.5%, 1%

TC

50–200 ppm

AEC-Q200

0402 & 0603 compliant

Specification Sheet Find Parts

RHC — High Power Thick Film 2512

Construction

Thick film (high power)

Size

2512

Power

2 W

Tolerance

1%, 5%

Range

0.1 Ω–1 MΩ

TC

100 ppm

Specification Sheet Find Parts

RNAN — Thin Film High Power (Aluminum Nitride Substrate)

Construction

Thin film on AlN

Sizes

0603, 0805, 1206, 2512

Power

Up to 6 W

TCR

±25 ppm

Tolerance

±0.1% to 1%

Specification Sheet Find Parts

RNCA — Automotive Grade Anti-sulfur Thin Film

Construction

Thin film (anti-sulfur)

Sizes

0402–1206

Tolerance

±0.05% to 1%

TCR

±10 ppm

AEC-Q200

Qualified

Specification Sheet Find Parts

RNCE — High Temperature High Stability Thin Film

Construction

Thin film (high stability)

Sizes

0402–1206

Operating Temp

Up to 175 °C

TCR

±25 ppm

AEC-Q200

Compliant

Specification Sheet Find Parts

RNCF — Precision Thin Film

Construction

Thin film (precision)

Sizes

0201–2512

Tolerance

0.01%–1%

TCR

2–50 ppm

AEC-Q200

Compliant

Specification Sheet Find Parts

RNCL — Thin Film High Power Anti-surge

Construction

Thin film (low inductance, anti-surge)

Sizes

1206, 1210, 2512

Tolerance

0.5%–5%

TC

50 or 100 ppm

AEC-Q200

Compliant

Specification Sheet Find Parts

RNCP — High Power Anti-Sulfur Thin Film

Construction

Thin film (anti-sulfur, high power)

Sizes

0402–1206

Tolerance

1%, 5%

Range

1 Ω–100 kΩ

TC

100 ppm

AEC-Q200

Compliant

Specification Sheet Find Parts

RNCS — Moisture Resistant Precision Thin Film

Construction

Thin film (moisture resistant)

Sizes

0402–2512

Tolerance

0.1%–0.5%

TCR

15, 25, 50 ppm

AEC-Q200

Compliant

Specification Sheet Find Parts

RNCU — Ultra-High Power Thin Film

Construction

Thin film (ultra-high power)

Size

1206

Tolerance

0.1%–1%

TCR

As low as 10 ppm

AEC-Q200

Compliant

Specification Sheet Find Parts

RNCV — Automotive Grade High Voltage Thin Film

Construction

Thin film (HV)

Sizes

0805, 1206, 1210

Tolerance

0.1%–1%

TCR

25, 50 ppm

AEC-Q200

Qualified

Specification Sheet Find Parts

RNHT — Automotive Grade High Temperature Thin Film

Construction

Thin film

Sizes

0402–1206

Tolerance

0.02%–0.5%

TCR

5–100 ppm

AEC-Q200

Qualified

Specification Sheet Find Parts

RTAN — Tantalum Nitride Thin Film

Construction

Thin film (TaN)

Sizes

0402–1206

Tolerance

0.05%–1%

TCR

10–50 ppm

Notes

Sulfur resistant, moisture-impervious

AEC-Q200

Compliant

Specification Sheet Application Help

RNWA — Automotive Grade Wide Terminal Thin Film

Construction

Thin film (wide terminal)

Sizes

0612, 1020, 1225

Tolerance

0.1%–1%

TCR

±25, ±50 ppm

AEC-Q200

Qualified

Specification Sheet Find Parts

RPC — Pulse Withstanding Thick Film

Construction

Thick film (pulse withstanding)

Sizes

0402–2512

Tolerance

0.5%–20%

AEC-Q200

1% and wider tolerances compliant

Specification Sheet Find Parts

RPCA — Automotive Grade Surge Withstanding

Construction

Thick film (surge)

Sizes

0402–2512

Notes

Excellent pulse handling, anti-sulfur

AEC-Q200

Qualified

Specification Sheet Find Parts

RPCQ — Automotive Grade High Power Pulse Withstanding

Construction

Thick film (high power pulse)

Sizes

1206, 2512

Tolerance

2%, 5%, 10%

Range

1 Ω–1 MΩ

AEC-Q200

Qualified

Specification Sheet Find Parts

RAVF — Convex Termination Thick Film Array

Construction

Thick film array (convex)

Circuits / Sizes

0402×2/4, 0603×2/4/8, 1206×4/8

AEC-Q200

Styles 102D/104D/164D

Specification Sheet Find Parts

RAVS — Convex Anti-sulfur Array

Construction

Thick film array (anti-sulfur)

Circuits

Multiple

Tolerance

1%, 2%, 5%

Specification Sheet Find Parts

RAF — Flat Termination Array

Construction

Thick film array (flat)

Circuits / Sizes

0201×2, 0201×4

Tolerance

1%, 5%

Note

Some styles not for new designs

Specification Sheet Find Parts

RACF — Concave Termination Array (Discontinued)

Construction

Thick film array (concave)

Note

Discontinued, not for new designs

Discontinuation Notice Alternatives

RVC — High Voltage Thick Film Chip Resistor

Construction

Thick film (high voltage)

Sizes

0402–2512

Voltage

Up to 4 kV

TC

100, 200, 400 ppm

AEC-Q200

Compliant

Specification Sheet Find Parts

RVCA — Automotive Grade High Voltage Thick Film

Construction

Thick film (HV, automotive)

Sizes

0402–2512

Tolerance

1%, 5%

AEC-Q200

Qualified

Specification Sheet Find Parts

RVCU — High Voltage Low VCR Chip Resistor

Construction

High voltage (low VCR)

Sizes

1206, 2010, 2512

Tolerance

0.5%, 1%, 5%

Meets

IEC-62368 (75 kΩ–27 MΩ)

Notes

Anti-sulfur; AEC-Q200 compliant

Specification Sheet Find Parts

HVC — Precision High Voltage Chip Resistor

Construction

Precision high voltage

Sizes

0603–3512

Voltage

Up to 3500 V

TCR

Down to 25 ppm

Specification Sheet Find Parts

HVCD — High Voltage Chip Divider

Construction

High voltage divider

Sizes

3512, 4020, 5020

Voltage

Ratings up to 4000 V

Specification Sheet Find Parts

HVCR — High Voltage Low VCR (100% VCR Screened)

Construction

High voltage (low VCR)

Sizes

1206, 2512

Tolerance

1%

Values

10 MΩ, 100 MΩ

Specification Sheet Find Parts

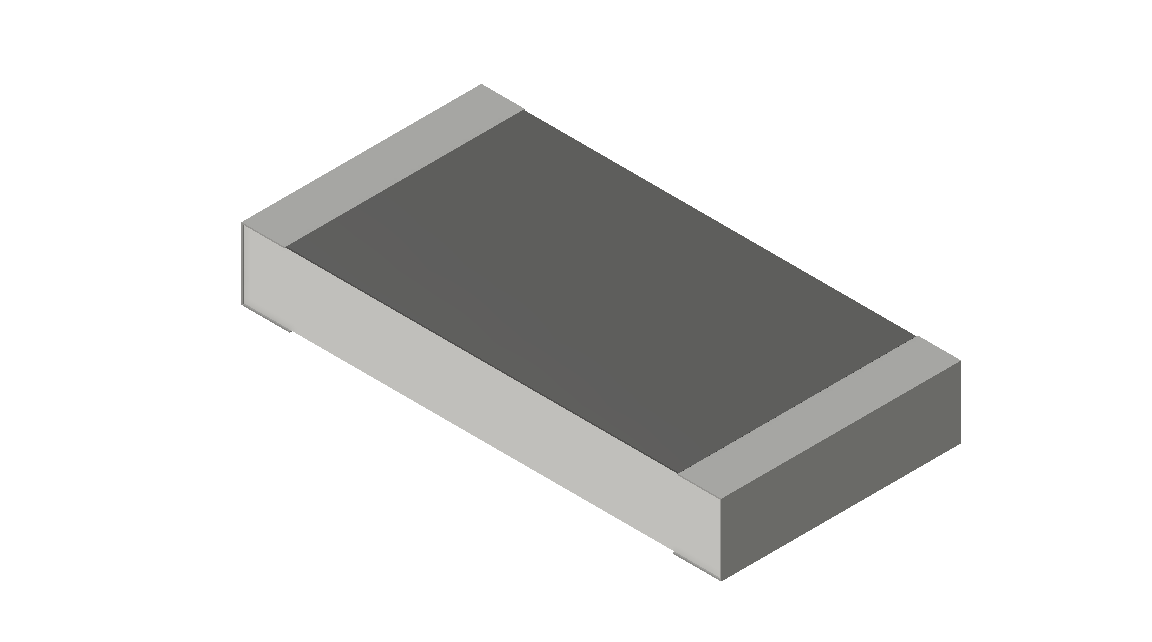

UHV — Ultra-High Voltage Chip Resistor

Construction

Ultra-high voltage

Sizes

2010–5020

Voltage

Extended handling up to 20 kV

TCR

100 ppm

Specification Sheet Find Parts

RMAN — Thick Film High Power (AlN Substrate)

Construction

Thick film on AlN substrate

Sizes

1206, 2512

Tolerance

1%, 5%

Range

3–2 kΩ

TC

150 ppm

Specification Sheet Find Parts

TMJ — Surface Mount Thermal Jumper

Construction

AlN substrate thermal jumper

Sizes

0603–2512

Notes

Low capacitance, high insulation resistance

Specification Sheet Discuss Application

MCJ — Metal Element High Current Jumper

Construction

Metal element jumper

Sizes

0201–2512

Max Resistance

0.001 / 0.0002 / 0.0005 Ω

Current

8–122 A (size dependent)

Specification Sheet Find Alternatives

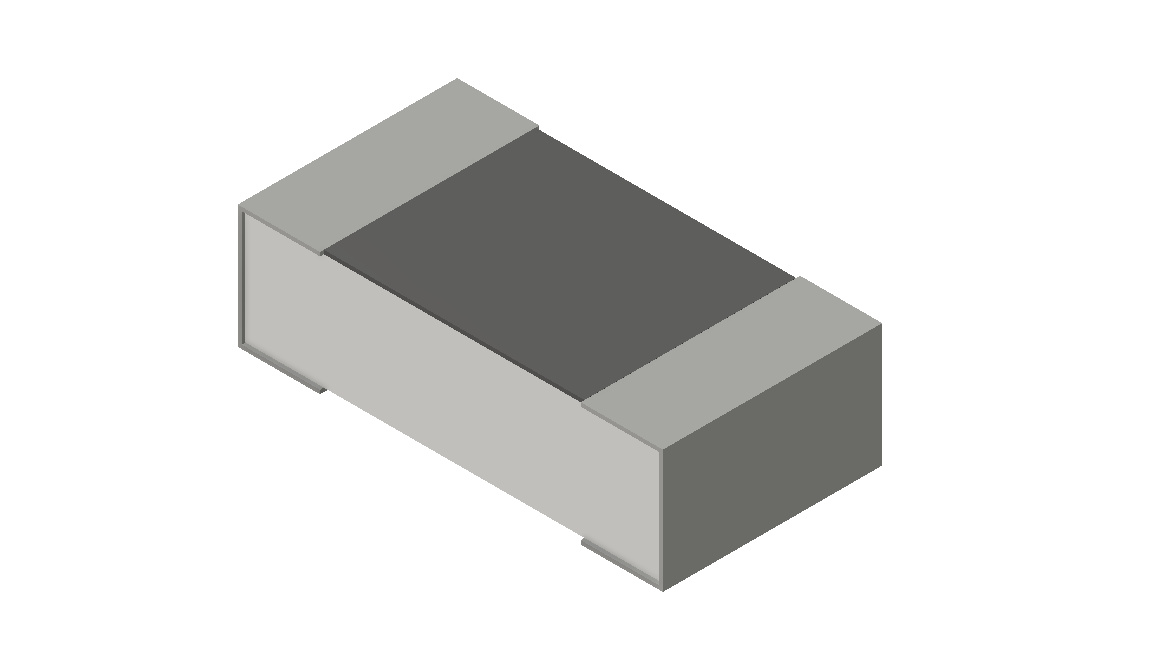

ESD(U) — Low / Ultra-Low Capacitance ESD Suppressor

Construction

ESD suppression device

Notes

Quick response, low cost

Specification Sheet Application Help

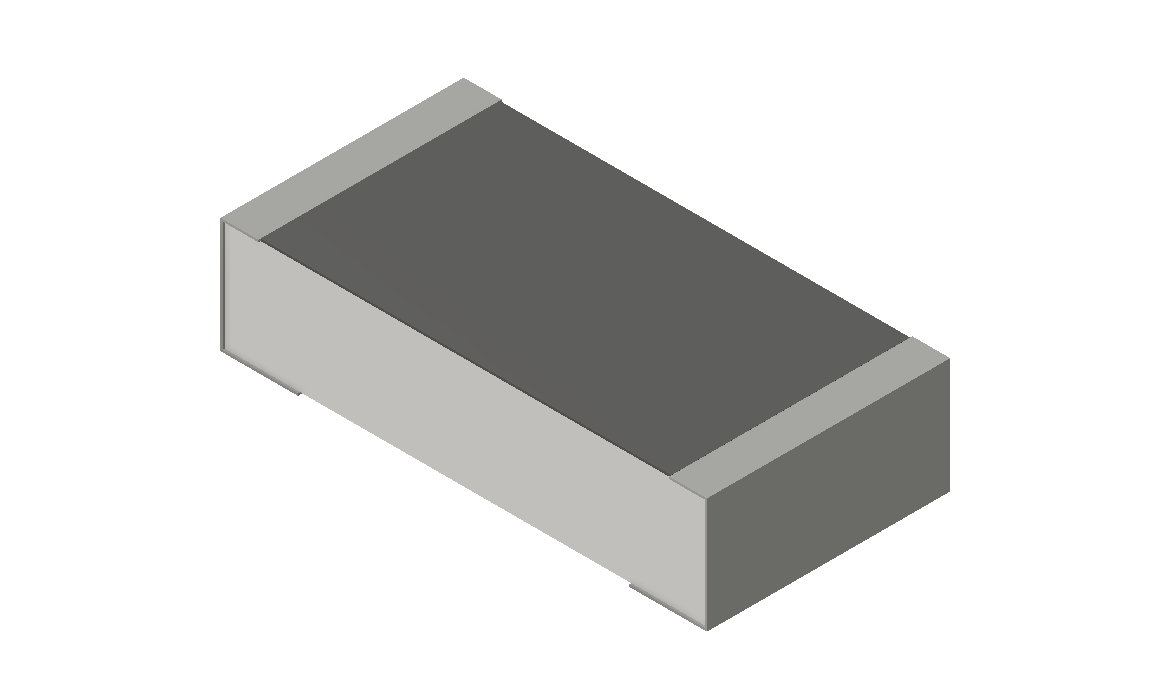

HGC — Thick Film Precision High Resistance

Construction

Thick film (high resistance)

Sizes

0402–3512

Range

10 kΩ–50 GΩ

Tolerance

0.1%–20%

TC

Down to 25 ppm

Specification Sheet Select Values

HMC — High Resistance Thick Film

Construction

Thick film (very high values)

Sizes

0402–2512

Range

11 MΩ–10 GΩ

Tolerance

1%, 5%, 10%

TC

200–1500 ppm

Specification Sheet Select Values
